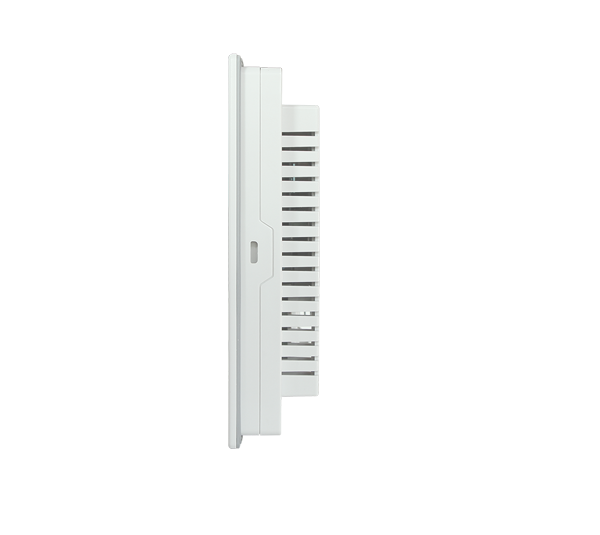

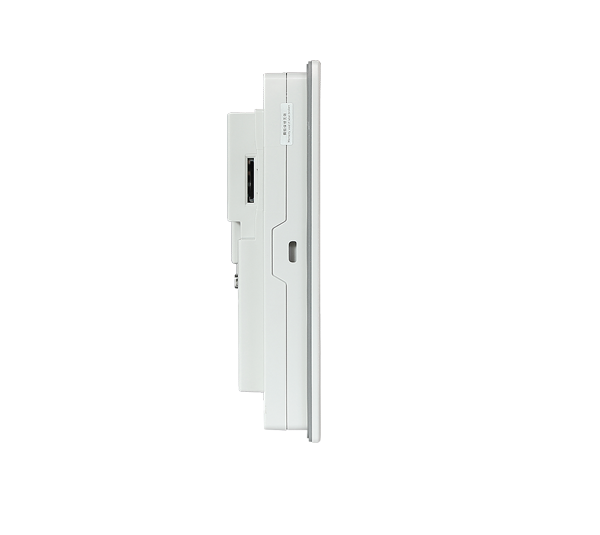

      F080E

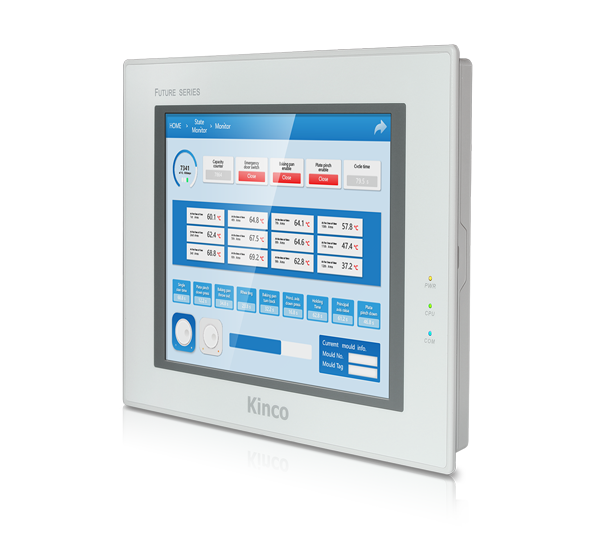

      Kinco HMI FUTURE Series

      Cortex-A9 Industrial CPU, 1GHz, RAM up to 512M.

      Built - in ferroelectric memory, support formula data unlimited times write.

      Three proofing coating process + Isolated power supply, high reliability.

      Support webcam access, real-time dynamic control.

      SPECIFICATION
      Performance Specification
      Display size

      8" TFT

      Resolution

      800¡Á600 px

      Display color

      16.7M

      Backlight

      LED

      Luminance

      250cd/m?

      LCD life

      More than 30000 hours

      Touch panel

      4-wire precision resistance network (surface hardness 4H)

      CPU

      32bit RISC Cortex-A9 1GHz

      Memory

      4GB Flash Memory+512MB Memory

      RTC

      Built-in RTC+32KB

      External storage

      2 USB Host+1 SD Card

      Printer port

      USB Host/Serial port

      Ethernet

      1*10/100M adaptable Ethernet interface

      Program download

      USB Slave/U Disk/Ethernet

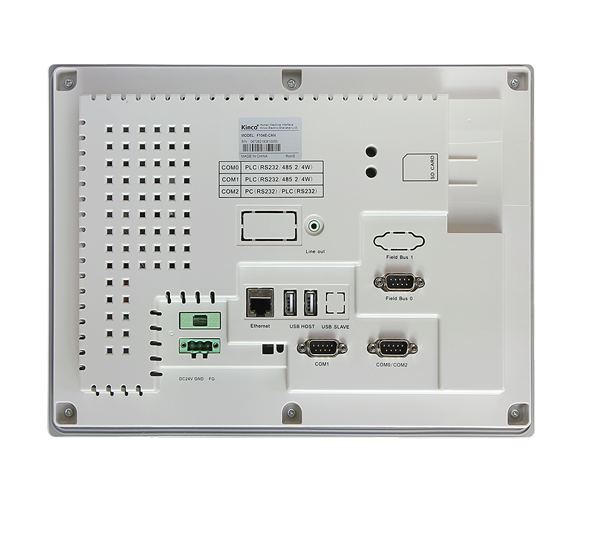

      Communication

      COM0: RS232/RS485/RS422, COM1: RS232/RS485/RS422, COM2: RS232

      Audio output

      1*Audio output

      Electrical Specification
      Input

      DC12V~DC28V, inbuilt isolated power supply

      Power

      8W

      Allowable loss of power

      <3ms

      Insulation resistance

      Over than 50M¦¸@500V DC

      Hi-pot test

      500V AC 1 minute

      Structure specification
      Shell color

      Light Gray

      Shell material

      Engineering plastics

      Shape size

      235¡Á172¡Á57.9 (mm)

      Cutout size

      224¡Á161 (mm)

      Weight

      1.27Kg

      Environmental Specification
      Working temperature

      -10~55¡æ

      Working humidity

      10~90%RH (non-condensing)

      Storage temperature

      -20~60¡æ

      Storage humidity

      10~90%RH (non-condensing)

      Sine vibration test

      10~500Hz, 30m/s?, X,Y,Z direction/hour

      Cooling mode

      Natural air cooling

      Product Certification
      Panel protection grade

      Conforming to IP65 certification

      CE certification

      Conforming to CE certification

      Software
      Configuration software

      Kinco DTools V4.1 and above version





      Future Series with a new generation of free software:

      Kinco DTools Configuration software which has four language versions, simple Chinese, traditional Chinese, English and Korean.

      Supports all installed fonts on the computer system.Internet of things function, support data cloud collection and storage. VNC Screen to screen, screen to computer, screen to mobile phone terminal interoperability. Support installment payment, PDF browsing, operation log record and other convenient control.Guided interface, humanized design, what you see is what you get, can be quickly started.
