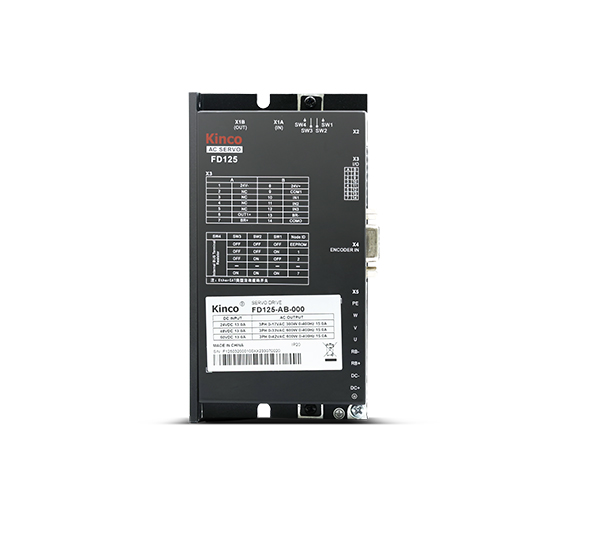

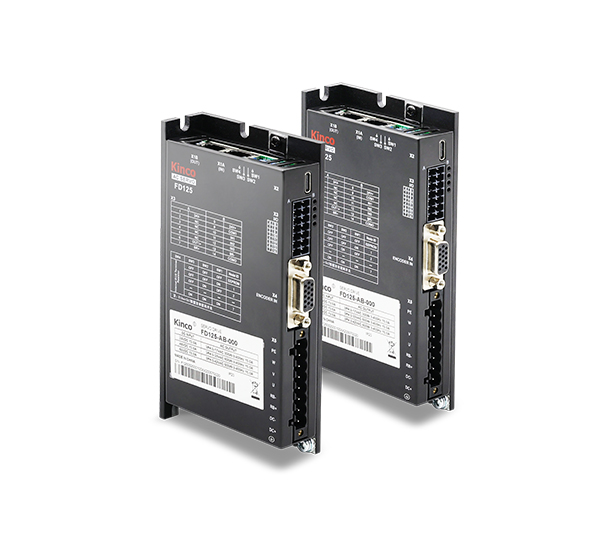

Model: FD125/FD135/FD145

Power range: 200W~2000W

Power supply voltage: 24VDC~60VDC

■ Main Features

? New high-computing power platform

   The main frequency has been increased by 2.4 times, with a position loop of 8K and a speed loop of 16K. The response speed and accuracy have been greatly improved, meeting the needs of high dynamic scenarios such as robots and logistics equipment.

? Performance upgrade

   The driver supports stable operation at -20 ° C low temperature, and the motor can choose IP67 high protection level, which is not afraid of severe cold, humidity, and dust environment, covering multiple fields such as logistics, medical, outdoor equipment, etc.

   The power supply voltage level is 24~60V, with a continuous output current increase of 20%. It has strong overload capacity and is suitable for high-intensity operations such as heavy-duty mobile robots (AGV/AMR).

? Convenient debugging, diverse communications

   Type-C interface directly connected to computer for debugging, combined with KS3 software to achieve "plug and play", saving more than 50% of debugging time.

   Support RS485, CANopen, EtherCAT multi protocol level communication, easily achieve multi axis collaborative control, and meet the intelligent requirements of complex production lines.

? Safety protection, stable operation

   Multiple safety mechanisms such as overspeed protection, over temperature protection, and short circuit protection have been certified by UL, CE, etc. to ensure the safety of human-machine cooperation and long-term stable operation of equipment.

■ Applicable Industries

   ? Logistics robots: Automatic navigation freight robot, multi-shuttle robot, automatic parking robot, etc.

   ? Logistics device: Sorting machine, tridmensional warehouse device, etc.

   ? Medical device: small size system.

   ? Other occasions: High response speed and high positioning precision.

■ FD1X5 series driver Models and Specifications
