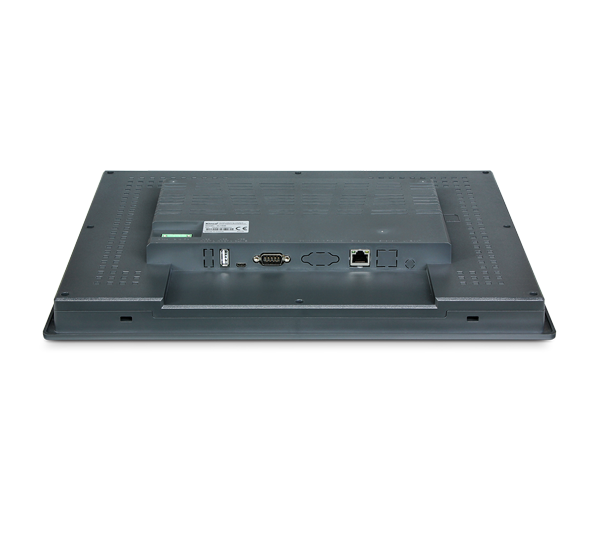

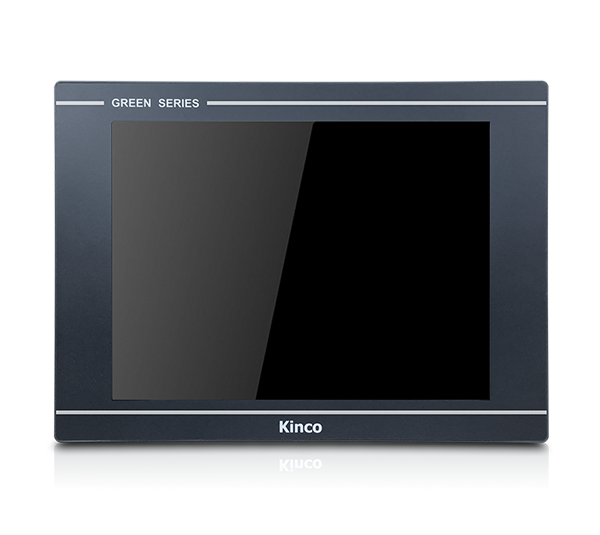

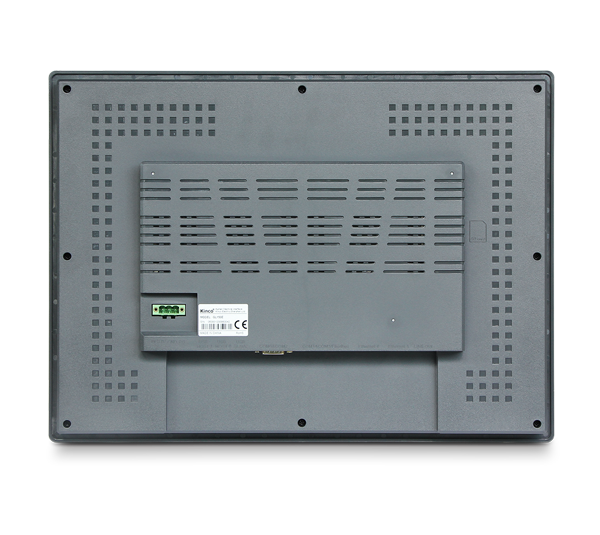

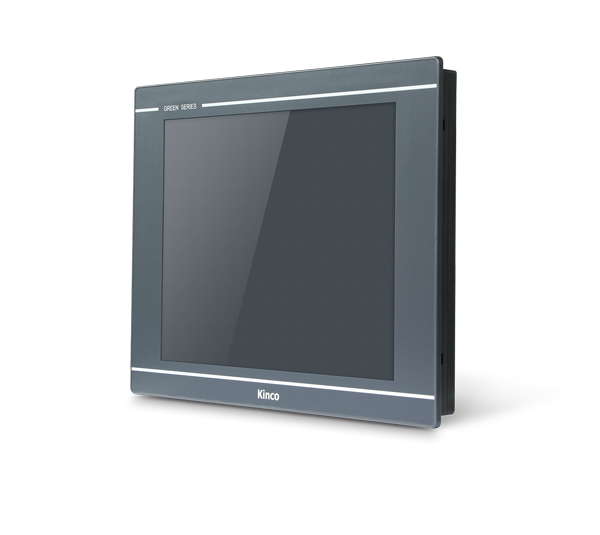

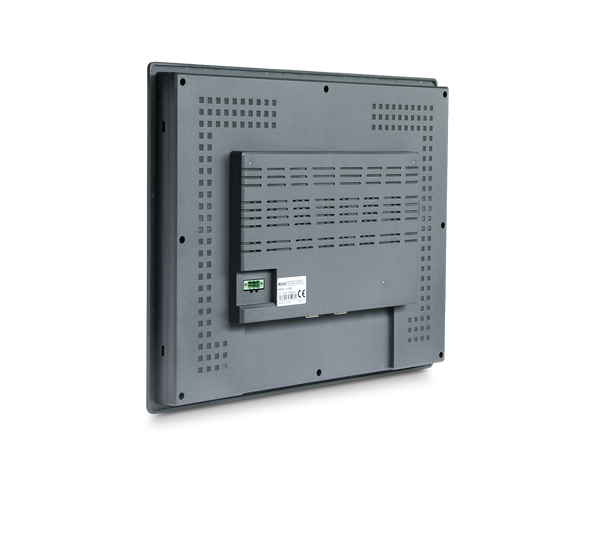

GL150E
Kinco HMI GREEN Series

15 inch large screen preferred

Built in isolated power supply enhances reliability

Industrial size 4:3, very visual coordination

Strong structure and atmosphere

GL150E
Performance Specification
Display size

15" TFT

Display area

304.13(W)¡Á228.10(H)

Resolution

1024¡Á768 px

Display color

65536 color

Visual angle

80/80/80/80(L/R/U/D)

Contrast

800:1

Backlight

LED

Luminance

420cd/m?

LCD life

50000 hours

Touch panel

4-wire precision resistance network (surface hardness 4H)

CPU

ARM RISC 32Bit 800MHz

Memory

256MB Flash Memory+ 128MB Memory

RTC

Built-in RTC

External storage

1 USB Host

Printer port

USB Host/Serial port

Ethernet

LAN0:10/100 Mbps

Program download

USB Slave(Micro USB)/U Disk/Ethernet

Communication

COM:RS232/RS485/RS422; COM2:RS232

Electrical Specification
Input range

DC10.8V~DC28V

Power

16W@DC24V

Allowable loss of power

<3ms

Insulation resistance

Greater than 50M¦¸@ 500V DC

Hi-pot test

500V AC 1 minute

Structure specification
Shell material

Engineering plastics

Shape size

398¡Á298¡Á47 (mm)

Cutout size

383¡Á283 (mm)

Weight

3Kg

Environmental Specification
Working temperature

-10~55¡æ

Working humidity

10~90%RH (non-condensing)

Storage temperature

-20~60¡æ

Storage humidity

10~90%RH (non-condensing)

Sine vibration test

10~500Hz, 30m/s?, X,Y,Z direction/hour

Cooling mode

Natural air cooling

Product Certification
Panel protection grade

Conforming to IP65 certification (4208-93)

CE certification

CE: EN61000-6-4:2007+A1:2011£¬EN61000-6-2:2005

Software
Configuration software

Kinco DTools V4.1 and above version
